Mastering the Techniques: Steps in Laying Bituminous Concrete
The steps in laying bituminous concrete are a symphony of precision and expertise. As we delve deeper into each stage, from selecting the right materials to applying advanced laying techniques, the importance of each element becomes increasingly apparent. This comprehensive overview serves as a practical roadmap for professionals in achieving excellence in bituminous pavement construction.
Overview of Bituminous Concrete Laying: Essential Steps and Techniques
Bituminous concrete, commonly known as asphalt, is a vital material in modern construction, particularly for road surfaces. It offers durability, weather resistance, and a smooth finish, making it an ideal choice for highways, runways, and parking areas. This section provides an overview of the essential steps and techniques involved in bituminous concrete laying, ensuring a foundational understanding for both professionals and enthusiasts.
Preparation of the Base: The success of bituminous concrete laying starts with proper base preparation. This involves grading and compacting the soil to create a stable, even surface. Ensuring the base is well-drained and free from organic materials is crucial. Sometimes, a layer of aggregate is added for enhanced stability.
Heating and Mixing the Bitumen: Bitumen, the binder in asphalt, is heated to a specific temperature to attain a workable viscosity. It is then mixed with aggregate materials like sand, gravel, and recycled asphalt in a controlled environment to produce the asphalt concrete mix.
Transportation and Delivery: The hot asphalt mix is transported from the plant to the construction site in insulated trucks. This is critical to maintain the temperature and workability of the mix.

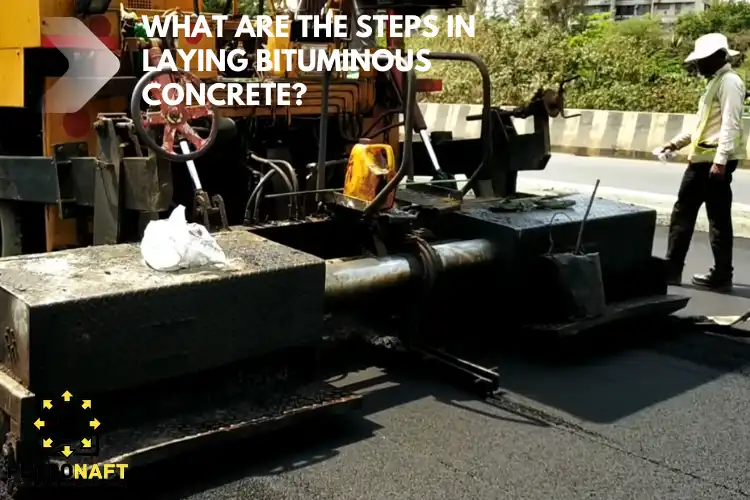

Laying the Asphalt: Upon arrival at the site, the asphalt mix is laid using a paver. The paver evenly spreads the asphalt at a predetermined thickness. The temperature of the mix should be monitored to ensure optimal compaction and finish.
Compaction: After laying, the asphalt is compacted using rollers. Initial compaction is achieved by vibratory rollers, followed by static rollers for final compaction. Proper compaction ensures longevity and durability of the surface.
Quality Control: Throughout the process, quality control is paramount. This includes monitoring the temperature of the mix, the rate of laying, and ensuring the compaction meets the necessary standards.
Cooling and Curing: Once laid and compacted, the asphalt needs to cool and cure. Traffic should be kept off the new surface for a specified period to ensure it achieves full strength.
Maintenance and Upkeep: Regular maintenance, such as sealing cracks and resealing, extends the life of bituminous pavements.
By understanding these steps and techniques, professionals and laypersons can appreciate the complexity and importance of bituminous concrete laying in modern construction. The process, though intricate, is crucial for creating high-quality, durable surfaces that withstand the test of time and traffic.
Preparing the Base: Key Considerations for Bituminous Pavement
The foundation of any bituminous pavement project lies in the preparation of the base. This crucial step determines the longevity and effectiveness of the pavement. A well-prepared base ensures a durable, stable, and long-lasting bituminous surface. This section delves into the key considerations necessary for preparing the base of a bituminous pavement.
Soil Evaluation and Treatment: The initial step involves evaluating the soil type and condition. Certain soils may require stabilization or treatment with lime or cement, particularly if they are highly expansive or have poor drainage.
Grading and Leveling: The area designated for the pavement must be graded and leveled. This process ensures a uniform slope for proper drainage and a level surface for the pavement. Grading also helps in removing any soft spots, which are detrimental to the stability of the base.
Compaction of the Subgrade: Compaction of the soil subgrade is vital for creating a stable and firm base. The soil should be compacted to a specified density, which is generally determined by a proctor test. Proper compaction prevents future settlement and degradation of the pavement.
Provision of Proper Drainage: Adequate drainage is essential to prevent water accumulation beneath the pavement. Water can weaken the base, leading to pavement failure. Installation of drainage systems or grading the base to facilitate water run-off is critical.
Adding and Compacting Aggregate Base: Over the compacted subgrade, an aggregate base layer is added. This layer typically consists of crushed stone or gravel. It’s crucial that this layer is evenly spread and compacted to the required density. The aggregate base provides a stable platform for the asphalt and further enhances drainage.
Quality Control and Testing: Throughout the base preparation, regular testing and quality control measures should be in place. This includes testing the compaction of the subgrade and the aggregate base layer to ensure they meet the required specifications.
Moisture Content Management: Maintaining the optimum moisture content in the base layers is essential for effective compaction. Too much moisture can lead to a weak base, while too little can hinder proper compaction.
Final Inspection Before Asphalt Laying: Before proceeding to lay the asphalt, a final inspection of the base is necessary. This ensures that all the layers are properly compacted, level, and ready to support the bituminous concrete.
In summary, preparing the base for bituminous pavement is a multifaceted process involving soil evaluation, grading, compaction, drainage, and quality control. Each of these steps plays a critical role in establishing a strong and durable foundation for the bituminous pavement, ultimately contributing to the overall success and longevity of the road or pavement project.
Layering Principles in Bituminous Pavement Construction
The construction of bituminous pavements involves a systematic approach to layering, which is essential for ensuring the durability, stability, and performance of the pavement. The layering process in bituminous pavement construction is not just about stacking materials; it’s a strategic placement of different materials, each serving a specific function. This section explores the principles of layering in bituminous pavement construction.
Understanding Pavement Layer Structure: Bituminous pavements typically consist of multiple layers: the subgrade, base course, binder course, and surface course. Each layer has a distinct role and is composed of different materials.
- Subgrade Layer: The subgrade is the foundation of the pavement structure, usually made of natural soil. It’s compacted and graded to provide a stable base for the subsequent layers.
- Base Course: The base course sits directly on top of the subgrade. It’s typically made of crushed stone or gravel and is designed to distribute traffic loads to the subgrade, while also providing drainage.
- Binder Course: The binder course is an intermediate layer between the base and the surface course. It’s made of a coarser aggregate than the surface course and is bound with a higher bitumen content. This layer provides additional load distribution and contributes to the overall stiffness and structural capacity of the pavement.
- Surface Course: The surface course is the top layer of the pavement, consisting of fine aggregates and a higher bitumen content. It’s designed to withstand traffic wear, provide a smooth driving surface, and resist water penetration.
Material Selection: The choice of materials for each layer is crucial. Materials are selected based on factors like traffic load, climate, and soil type. The aggregates used in each layer vary in size and quality, suited to the layer’s specific function.
Thickness Design: The thickness of each layer is determined based on the expected traffic load, soil conditions, and overall pavement design life. Thicker layers are used for higher traffic areas and where the soil subgrade is less stable.
Gradation and Compaction: Proper gradation of the aggregates in each layer ensures stability and resistance to deformation. Compaction is critical in each layer to increase the density and strength of the material, reducing water penetration and increasing the lifespan of the pavement.
Quality Control and Testing: Throughout the layering process, quality control measures such as density tests, gradation analysis, and material inspections ensure that each layer meets the design specifications.
Joint and Edge Treatments: Proper treatment of joints and edges in each layer is vital to prevent water ingress and material unraveling, which can lead to premature pavement failure.
In conclusion, the principles of layering in bituminous pavement construction are pivotal in creating a pavement structure that is capable of withstanding the intended traffic loads and environmental conditions. Each layer plays a specific role in the overall performance and longevity of the pavement, making it imperative to adhere to these principles during construction.
Bitumen Spraying Techniques: Ensuring Quality and Durability
Bitumen spraying is a critical process in the construction of bituminous pavements, playing a key role in binding the layers together and ensuring the longevity of the pavement. The technique used in bitumen spraying significantly affects the quality and durability of the pavement. This section delves into the various aspects of bitumen spraying techniques that are essential for achieving optimal results.
Understanding Bitumen Spraying: Bitumen spraying involves applying a uniform layer of bitumen over the prepared surface or between layers of aggregates. It serves as a binder that holds the aggregate in place and provides waterproofing to the pavement.
Selection of Bitumen: The type of bitumen used for spraying depends on the pavement requirements, climatic conditions, and traffic loads. Common types include cutbacks, emulsions, and modified bitumens. Each has different properties and is suitable for specific conditions.
Spraying Equipment: The choice of equipment for bitumen spraying is crucial. Sprayers must be capable of delivering bitumen at a consistent rate, temperature, and pressure. Modern sprayers are equipped with precision nozzles and temperature control systems to ensure even application.
Temperature Control: Bitumen must be sprayed at an optimal temperature. Too hot, and it can cause premature aging of the bitumen; too cold, and it won’t bind properly with the aggregate. Maintaining the correct temperature is vital for effective spraying.
Spray Rate Calibration: The rate of bitumen application must be carefully calibrated based on the aggregate size, pavement type, and traffic conditions. Over-spraying can lead to bleeding, while under-spraying can result in poor binding and pavement failure.
Uniform Application: Achieving a uniform coat of bitumen is critical. Uneven spraying can lead to weak spots in the pavement. Operators must ensure consistent movement and overlap between passes to avoid gaps or overlaps in coverage.
Safety and Environmental Considerations: Bitumen spraying involves handling hot materials and potentially hazardous chemicals. Adherence to safety protocols and environmental regulations is essential to protect workers and minimize ecological impact.
Quality Assurance: Regular testing and inspection during the bitumen spraying process are essential for quality assurance. This includes checking the temperature, spray rate, and uniformity of application.
Post-Spraying Checks: After spraying, it is important to inspect the surface for any inconsistencies or defects. Any issues should be addressed promptly to ensure the integrity of the pavement.
In summary, bitumen spraying is a sophisticated process that requires attention to detail, precise equipment, and skilled operation. By adhering to these techniques, constructors can ensure the bitumen is applied effectively, contributing significantly to the pavement’s overall quality and durability.
The Role of Temperature and Weather in Bituminous Concrete Laying
Temperature and weather conditions play a pivotal role in the successful laying of bituminous concrete. These factors significantly influence the handling, laying, and compaction of asphalt mixtures, thereby affecting the quality and longevity of the pavement. Understanding and adapting to these environmental conditions is crucial for ensuring optimal results. This section explores how temperature and weather impact the bituminous concrete laying process.
Optimal Temperature Range for Bituminous Laying: Bituminous material needs to be laid and compacted at specific temperatures to ensure proper bonding and compaction. The optimal temperature range for laying bituminous concrete typically falls between 150°C and 190°C. Below this range, the asphalt cools too quickly, leading to inadequate compaction and bonding. Above this range, the bitumen may age prematurely, affecting its long-term performance.
Impact of Ambient Temperature: The ambient temperature significantly affects the cooling rate of the asphalt mix. In colder weather, the asphalt cools faster, reducing the time available for proper compaction. Conversely, in hot weather, the asphalt remains workable for longer, but there is a risk of the bitumen becoming too fluid, which can affect the mix’s stability.
Weather Conditions and Laying Process: Rain, humidity, and wind can adversely affect the bituminous laying process. Rain can cool the mix too rapidly and also affect the bonding between layers. High humidity and wind can change the cooling rate of the asphalt mix, impacting the time available for compaction.
Temperature Control During Transportation: Maintaining the temperature of the bituminous mix during transportation from the plant to the construction site is crucial. Insulated trucks are often used to ensure the mix does not cool down excessively during transit, especially in colder climates.
Seasonal Considerations: The time of year can dictate when bituminous laying is feasible. In many regions, asphalt laying is avoided during winter months due to low temperatures, which can hinder proper compaction and bonding.
Site Preparation in Different Weather Conditions: Preparing the site for asphalt laying involves considering the current weather conditions. For instance, during wet conditions, ensuring proper drainage and drying of the base layer is crucial before laying the asphalt.
Monitoring and Adjusting to Weather Variations: Constant monitoring of weather conditions is essential during the laying process. Adjustments may need to be made in real-time, such as changing the compaction strategy or altering the thickness of the asphalt layer.
Quality Control: Implementing stringent quality control measures is vital to counter the effects of temperature and weather. This includes monitoring the temperature of the mix, the ambient temperature, and humidity levels.
In conclusion, temperature and weather are critical factors in the bituminous concrete laying process. A comprehensive understanding and proactive management of these environmental conditions are essential to ensure the asphalt is laid correctly, achieving the desired compaction, bonding, and ultimately the durability of the pavement.
Calculating Material Quantities and Costs in Bituminous Pavement
Accurate calculation of material quantities and associated costs is a fundamental aspect of planning and executing bituminous pavement projects. This process not only ensures the economic efficiency of the project but also guarantees that sufficient materials are available to meet the project specifications. This section provides insights into how to calculate material quantities and estimate the costs involved in bituminous pavement construction.
Understanding Project Specifications: Before calculating materials, it’s essential to thoroughly understand the project’s specifications, including the area to be paved, desired thickness of each layer, and the type of bituminous mix required.
Area and Volume Calculations: The first step is to calculate the area of the pavement. Once the area is determined, multiply it by the thickness of each layer to obtain the volume. Remember, the thickness should be converted from inches or millimeters to feet or meters to match the area units.
Density of Materials: The density of the bituminous mix is crucial for converting volume to weight, as materials are typically purchased by weight. The density varies based on the type of mix and aggregate used.
Bituminous Mix Calculations: Utilize the volume of the pavement layer and the density of the bituminous mix to calculate the total weight of the material required. Additional factors, such as waste and compaction loss, should also be considered.
Cost Estimation: To estimate the cost, multiply the total weight of the bituminous mix by its unit cost. This cost can vary based on the type of bitumen, the aggregate used, and market conditions.
Incorporating Other Materials: Don’t forget to calculate the quantities and costs of other materials like base materials, tack coats, and any reinforcing layers.
Transportation and Handling Costs: Consider the cost of transporting materials to the site. The distance from the supply plant to the project site significantly impacts these costs.
Contingencies and Overheads: Add a contingency percentage to the total cost to account for unexpected expenses. Also, include overhead costs like equipment, labor, and site management.
Use of Software and Tools: Various construction management software and tools can help in accurately calculating materials and costs. These tools often include features to adjust for local prices and conditions.
Regular Updates and Adjustments: Material costs can fluctuate, so it’s important to regularly update cost estimates. Adjustments may also be necessary based on changes in project scope or specifications.
In summary, calculating material quantities and costs for bituminous pavement involves understanding project specifications, calculating area and volume, considering the density of materials, estimating costs of all components, and adding contingencies and overheads. Accurate calculations are essential for budgeting, procurement, and overall project management, ensuring the project is economically viable and completed successfully.
Advanced Laying Techniques: Improving Efficiency and Performance
The laying of bituminous concrete has evolved significantly with technological advancements, leading to improved efficiency and enhanced performance of the pavement. Advanced laying techniques not only streamline the construction process but also contribute to the longevity and durability of the pavement. This section explores some of these innovative techniques and how they can be utilized to optimize the laying of bituminous concrete.
Warm Mix Asphalt (WMA) Technology: WMA refers to technologies that allow the mixing and laying of asphalt at lower temperatures compared to traditional hot mix asphalt. This technique reduces fuel consumption, lowers greenhouse gas emissions, and improves working conditions by reducing fumes and odors.
Geosynthetic Interlayers: Using geosynthetic interlayers between the base layer and the asphalt layer can enhance the overall strength and longevity of the pavement. These interlayers act as a barrier against water infiltration and reduce the formation of cracks and ruts.
Intelligent Compaction (IC) Systems: IC systems utilize advanced rollers equipped with GPS, accelerometers, and other sensors to provide real-time feedback on compaction performance. This technology ensures uniform compaction across the entire pavement surface, enhancing its durability and load-bearing capacity.
Recycled Asphalt Pavement (RAP): Incorporating RAP into the asphalt mix is a sustainable practice that reduces the need for new materials and lowers construction costs. Advanced techniques allow higher percentages of RAP without compromising the quality of the pavement.
Automated Paving Technologies: The use of automated and GPS-guided paving equipment ensures precise thickness and grade control. This technology leads to more consistent pavement layers and reduces material wastage.
Infrared Thermal Imaging: This technique involves using infrared cameras to monitor the temperature distribution of the asphalt during laying. It helps in identifying cold spots where compaction might be inadequate, ensuring a uniformly compacted surface.
Porous Asphalt Pavements: Porous or permeable asphalt allows water to drain through the pavement, reducing runoff and improving water quality. Advanced techniques in laying porous asphalt ensure its functionality while maintaining structural integrity.
High-Modulus Asphalt (HiMA): HiMA is an advanced asphalt mix that offers greater stiffness and resistance to deformation. This is particularly useful in high-traffic areas or heavy load conditions, enhancing the pavement’s load-bearing capacity.
Eco-friendly Sealers and Finishes: The use of environmentally friendly sealers and finishes not only protects the pavement but also contributes to sustainability. These materials are often low in volatile organic compounds and have a reduced environmental footprint.
In conclusion, advanced laying techniques in bituminous pavement construction are pivotal in meeting the modern-day requirements of efficiency, performance, and environmental stewardship. By incorporating these innovative practices, road construction projects can achieve higher quality standards, longer pavement life, and greater cost-effectiveness.
Maintenance and Longevity of Bituminous Pavements: What to Know
Maintaining bituminous pavements is crucial for ensuring their longevity and optimal performance. The lifespan of a bituminous pavement can be significantly extended through proper maintenance practices. This section highlights key strategies and considerations for maintaining bituminous pavements, aimed at preserving their integrity and extending their service life.
Routine Inspections: Regular inspections are the first step in pavement maintenance. These inspections help identify issues such as cracks, potholes, and wear before they become major problems. Frequency of inspections should increase with the pavement’s age and traffic volume.
Crack Sealing: One of the most effective maintenance practices is crack sealing. Cracks in the pavement allow water to penetrate the base layer, leading to further deterioration. Sealing these cracks promptly prevents water ingress and extends the pavement’s life.
Pothole Repairs: Potholes are not only a hazard to traffic but also accelerate the deterioration of the pavement. Timely patching of potholes is essential. Various methods, including cold patching and hot mix asphalt patching, can be used depending on the size and severity of the pothole.
Surface Treatments: Surface treatments such as sealcoating can protect the asphalt from the effects of weathering and oxidation. Sealcoating also provides a barrier against oil and gas spills and refreshes the surface appearance.
Drainage Maintenance: Proper drainage is vital for pavement longevity. Ensuring that water drains away from the pavement surface and that drainage structures are clear of debris can prevent water-related damages.
Load Management: Heavy loads can cause premature wear and deterioration of pavements. Implementing load management strategies, such as restricting heavy vehicle access or using thicker pavement designs in high-load areas, can prolong pavement life.
Overlays and Resurfacing: When pavements show signs of significant wear, overlays or resurfacing can be effective. This involves applying a new layer of asphalt over the existing pavement, offering a cost-effective way to extend its service life.
Use of Modern Materials: Utilizing modern, high-performance materials for repairs and maintenance can improve the longevity of the pavement. These materials often offer better resistance to weathering, traffic loads, and environmental stressors.
Environmental Considerations: Considering environmental factors such as temperature changes, precipitation patterns, and exposure to chemicals (like salts and de-icers) is crucial in maintenance planning.
Record Keeping and Planning: Keeping detailed records of maintenance activities and pavement conditions over time aids in effective planning. This data can be used to predict future maintenance needs and allocate resources more efficiently.
In summary, the maintenance and longevity of bituminous pavements depend on regular inspections, timely repairs, and proactive strategies to address potential issues. A well-planned maintenance program can significantly extend the lifespan of a pavement, ensuring its safety, functionality, and cost-effectiveness.
In the comprehensive exploration of the steps in laying bituminous concrete, we have delved into the intricate details and technicalities that define this crucial construction process. From the initial groundwork of preparing the base, crucial for ensuring stability and longevity, to the advanced techniques that enhance efficiency and performance, each step plays a pivotal role in the success of bituminous pavement. The role of temperature and weather in influencing the laying process, along with the importance of regular maintenance, underscores the complexity and precision required in this field. This guide serves not only as an educational resource but also as a practical reference for professionals aiming to master the steps in laying bituminous concrete and ensure the creation of durable, high-quality pavements.
Top FAQs: Expert Answers to Your Common Queries
- What are the steps in construction of bituminous concrete? The construction of bituminous concrete, also known as asphalt concrete, involves several key steps: preparing the base, heating and mixing the bitumen with aggregates, transporting the mix to the site, laying the asphalt, compacting it, and allowing it to cure. Each step is crucial for ensuring the durability and quality of the pavement.
- How do you make bituminous concrete? Bituminous concrete is made by mixing bitumen, a sticky, black, and highly viscous liquid or semi-solid form of petroleum, with aggregate materials like sand, gravel, and recycled asphalt. The mixture is heated to around 150°C to 190°C, making it pliable for application and compaction on the desired surface.
- What are the layers of bituminous pavement construction? Bituminous pavement typically consists of three layers: the base course at the bottom, made of crushed stone or gravel; the binder course in the middle, containing larger aggregates and more bitumen; and the surface course on top, which has finer aggregates and a higher bitumen content for a smooth finish.
- What are the operations of bitumen laying plant? A bitumen laying plant primarily performs heating and mixing of bitumen with aggregates to prepare the asphalt mix. It maintains the bitumen at a controlled temperature, ensuring it stays workable until application. The plant also oversees the proportioning of bitumen and aggregates and may include facilities for storing, transporting, and recycling old asphalt.
- What are the layers of bitumen pavement? The layers of bitumen pavement include the subgrade layer made of compacted soil, the base layer consisting of crushed stone or gravel, the binder layer with a higher proportion of bitumen and coarser aggregates, and the surface layer, which is the topmost part with finer aggregates for a smooth driving experience.
- What is spraying in bitumen laying? Spraying in bitumen laying refers to the application of bitumen on the road surface or between layers of aggregates using a sprayer. This process ensures an even and uniform distribution of bitumen, which acts as a binder to hold the aggregates together and provides waterproofing to the pavement. The technique and equipment used for spraying are vital for the quality of the pavement.
- What is Bitumen 60/70 and how is it used in bituminous concrete laying? Bitumen 60/70 is a standard penetration grade bitumen primarily used in the road construction and paving industries. It’s known for its medium consistency and is used in the asphalt mix to bind the aggregate together, providing durability and flexibility to the pavement.
